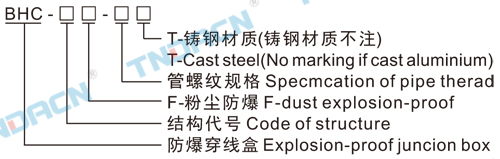

型号含义 Modelimplication
适用范围 Applications
1. 1区、2区危险场所或20区、21区、22区危险场所；
2. IIA、ⅡB、IIC爆炸性气体环境或可燃性粉尘环境；
3. 户内、户外
4. 防爆标志：
5. 防护等级：IP65；
6.应用于石油、化工、航天、军工等场所。
1. Hazardous:division 1 &2,or 20,21,&22;
2. Explosive gas atmosphers: class ⅡA ⅡB or inflammable dust environment;
3. Indoor or outdoor;
4. Ex-mark：
5. Degree of protection:IP65
6.Widely using in the fields of oil, Chemical industry, spaceflight, war ind-ustry and so on.

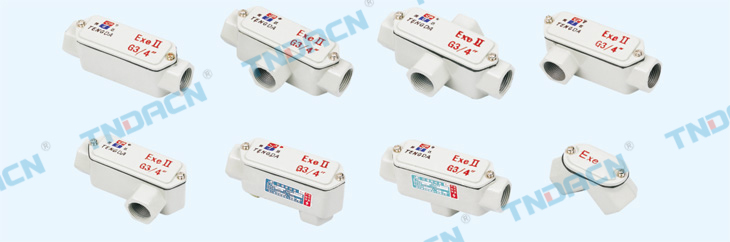

产品特点 Features
1.壳体采用高强度铝合金一次性压铸成型，表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、防爆性能优良，表面塑粉附着力强，具有良好的防腐能力，表面光洁，美观大方；
2.结构形式多样，便于安装；
3.进出线口螺纹可特制。
1.Shell made of high strength aluminum alloy casting off thesurface after blast cleaning by high voltage electrostaticspray. Shell compact structure, high density materialstrength, Explosion-proof performance, the surface ofplastic power adhesion ability with good anti-corrosion,the surface smooth, elegant appearance.
2.The structures are various, which are convenient forinstallation;
3.Thread specification can be specially designed.
主要技术参数 Main technical parameters
