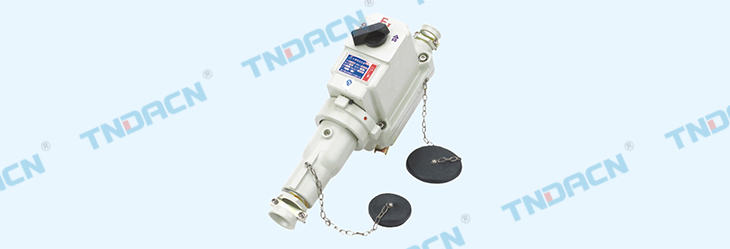

AC-Z type explosion-proof plug and socket(ⅡB)

Product Details
Return

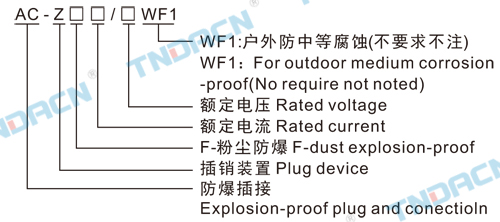

型号含义 Model implication

适用范围 Applications

1.1区、2区或20区、21区、22区危险场所；
2.ⅡA、ⅡB、ⅡC类爆炸性气体环境或或燃性粉尘环境;
3.户内、户外(IP54,IP65*)
4.温度组别：T1~T4
5.应用于石油、化工、航天、军工等场所。
1.Hazardous:division 1&2 or zone 20、21、22；
2.Explosive gas or steam atmosphere: class ⅡA,ⅡB,ⅡC orflammable dust atmospheres;
3.Indoor or outdoor(IP54,IP65*)
4.Temperature class: T1~T4
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.

产品特点 Features

1.壳体采用高强度合金铝一次性压铸成型，表面经高速抛丸清理后高压静电喷塑。外壳结构紧凑合理、材质密度高强度好、防爆性能优良，表面塑粉附着力强具有良好的防腐能力，表面光洁，美观大方；
2.具有联锁结构，只有插座内的开关分断后方能拔出插头。
3.钢管或电缆布线。
1.Shell made of high strength aluminum alloy casting off thesurface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength,Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth,elegant appearance;
2.With interlocks, only if the switch inside the socket is off, theplug can be extracted.
3.Wiring with steel tube or cable.

主要技术参数 Main technical parameters

产品型号 Type	额定电压 (V)Rated voltage	额定电流 (A)Rated current	使用类别 Using sort	电缆外径(φmm) Cabke`s outer diameter	出线口螺纹(G'') Outlet`s thread	极数 No.of pole
AC-Z-16 AC-Z-32	220/380	16 32	AC-1 AC-3	8~14 12~19	1 1	1P+N+PE 3P+N+PE

防爆标志 Ex-mark	防护等级 Protection grade
ExdⅡBT6/T5/T4 等效于 Ⅱ 2G ExdⅡBT6/T5/T4(欧标) ExdⅡCT6/T5/T4 等效于 Ⅱ 2G ExdⅡCT6/T5/T4(欧标) DIP A20 TA,T6/T5/T4 等效于 Ⅱ 1D Ex tD A20 T6/T5/T4(欧标)	IP54

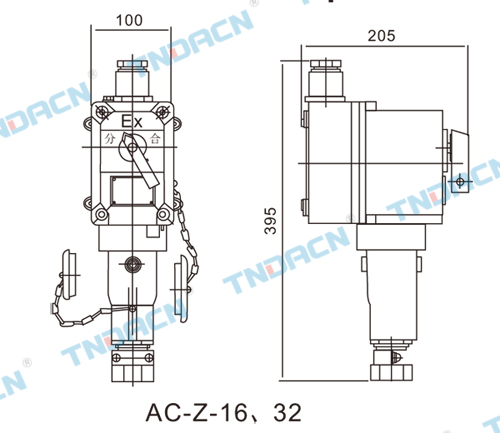

外形举例 Outline example
